Perforated Sheets

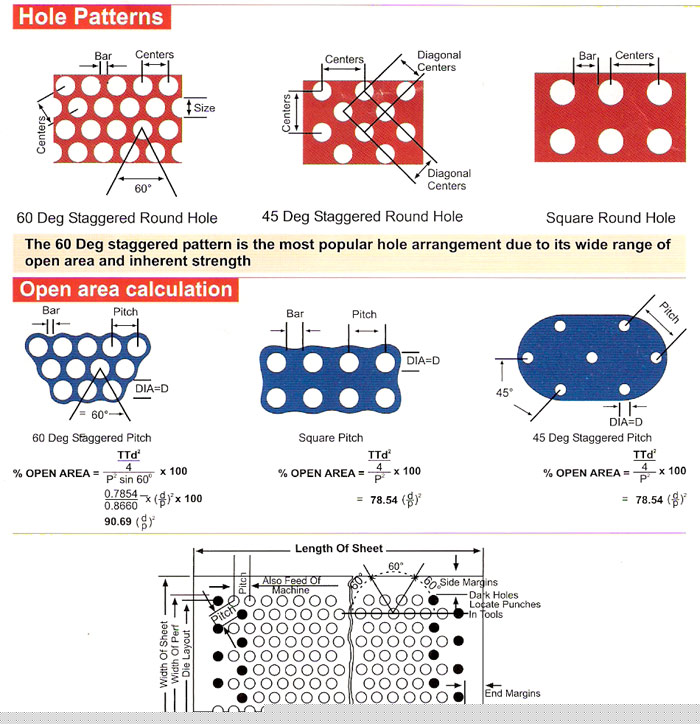

Perforation: can be diamond, round, square, eliptical, countersunk, burred, lipped, specially shaped, or slots that have round or square ends.

Materials: In addition to Iron and steel, we perforate aluminium, brass, bronze, copper, cloth, zinc and tinplate, as well as paper, hardboard, plastic, rubber, nickel, stainless steel, monel and precious metals.

Coiled Perforated Materials: Coils up to 5 tonne (7 tonne in special cases) in weight having core diameters ranging from 25mm (1''), widths up to 1270 mm (50'') and metal thickness of 2 mm (.080'') can be ordered. Plain margins can be produced along the edge of the coil. Unperforated areas can be provided along the edge of the coil at required spacings although in same cases it may be nessary for them to be a multiple of the pitch being perforated. We can supply in Coil form, or in lengths cut to size from it.

Quotations: To enable us to quote accurately on your specific requirements, we request that all information should be accodingly supplied as per requirement as stated in the general Ordering Information section be supplied.

Margins and Black Sections: Any approximate size may be left where required, the cost varying according to circumstances.

Finishes: Galvanised, Painted, Anodised, Plastic Coated, and various special finishes.

Product Range: Sheet Thickness From 0.15mm up to 10mm Hole Dia from 0.5 mm uto 75mm maximum width size up to 1300mm.
